Steam-Water Separator: Critical Technology for Efficient Steam Systems

Steam-Water Separator: Critical Technology for Efficient Steam Systems

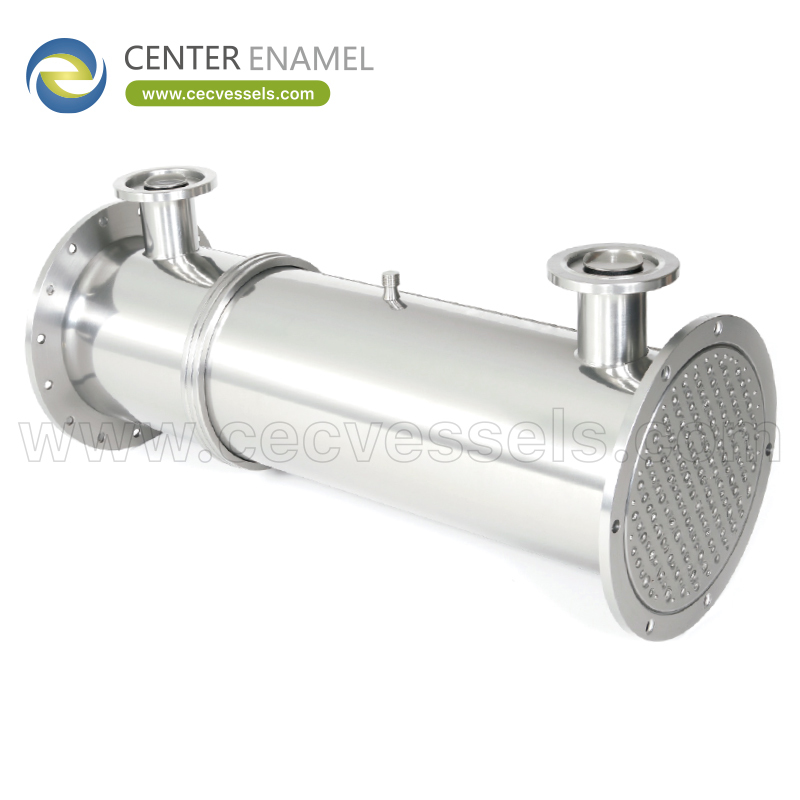

In industries ranging from power generation to chemical processing, steam is a fundamental energy carrier and process medium. However, the presence of water droplets entrained within steam, known as wet steam, can cause serious operational inefficiencies, equipment damage, and safety risks. To ensure reliable and efficient steam system performance, the use of steam-water separators is indispensable.

At Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel), innovation and engineering excellence drive the development of advanced steam-water separators that improve the quality of steam supply by efficiently separating entrained water.

What Is a Steam-Water Separator?

A steam-water separator is a mechanical device designed specifically to remove water droplets and condensate entrained within steam flow. Unlike steam traps that remove liquid condensate from pipelines, steam-water separators target moisture still suspended in the steam phase itself, ensuring delivery of dry steam to turbines, heat exchangers, or process equipment.

By providing dry steam, separators reduce corrosion, erosion, water hammer risks, and improve heat transfer efficiency. This separation is essential in maintaining optimal energy utilization, equipment longevity, and process reliability.

Importance of Dry Steam in Industrial Systems

Steam generated from boilers is typically saturated and contains a certain portion of water droplets due to condensation and carryover. The presence of wet steam can lead to several problems:

• Reduced Energy Efficiency: Water droplets absorb heat without contributing to useful work, lowering thermal efficiency.
• Equipment Damage: Liquid water causes erosion on turbine blades, valves, and piping, as well as corrosion and scaling.
• Operational Hazards: Water hammer caused by condensate accumulation can damage piping and instruments, leading to costly downtime.
• Product Quality Issues: In food, pharmaceutical, or chemical industries, wet steam can contaminate products or reduce processing quality.

Steam-water separators thus become a crucial component of steam systems, especially upstream of critical equipment like turbines or reactors requiring high-quality dry steam.

Working Principles of Steam-Water Separators

Steam-water separators operate by exploiting differences in inertia, density, and momentum between steam and water droplets, employing various physical mechanisms to separate the two phases.

1. Inertial Separation (Impact and Deflection)

• Steam with entrained water droplets enters the separator body and is forced to rapidly change direction by baffles or vanes.
• Due to their greater mass and inertia, water droplets cannot follow the steam’s directional change as easily as steam molecules.
• These droplets collide with separator walls or baffles and coalesce, falling downwards by gravity to a collection chamber.
• The steam, now containing fewer droplets, continues its flow upwards or forwards depending on the design.

2. Centrifugal Separation

• Some separators channel the wet steam into a spiral or cyclonic motion creating centrifugal forces.
• Water droplets, being heavier, are flung outward to the separator walls where they coalesce and drain down.
• The dry steam exits through the central core of the cyclone.

3. Coalescence Separation

• Wire mesh demisters or coalescing pads inside the separator create obstacles that force water droplets to collide and combine.
• Larger droplets subsequently fall out due to gravity.

Types of Steam-Water Separators

Several designs are commonly used depending on application, flow rate, pressure, and required dryness fraction.

Baffle (Impact) Type Separators

• Use flat or curved baffle plates to force steam directional changes.
• Water droplets impact plates and are separated by inertia.
• Widely used due to simple construction and effectiveness over a range of velocities.

Cyclonic or Centrifugal Separators

• Impart swirl to steam flow using internal fins or vanes.
• Effective at separating fine droplets at high velocities.
• Used extensively in power plants and industrial boilers.

Combined Separators

• Combine baffle impact with cyclone action and coalescing internals for maximum separation efficiency.
• Ideal where removal of very fine droplets is critical.

Design Considerations

To achieve optimal separator performance, key parameters must be carefully designed:

• Flow Velocity: Too low and separation is inefficient; too high and pressure losses or damage occur.
• Separator Size and Geometry: Diameter, length, and shape influence residence time and separation efficiency.
• Pressure and Temperature: Influences steam density and moisture behavior.
• Drainage Mechanism: Efficient removal of collected water through steam traps or drain valves is essential.
• Materials: Resistant to corrosion, erosion, and thermal stresses; preferred materials include stainless steel and glass-fused-to-steel for aggressive environments.

Materials and Durability

At Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel), our steam-water separators are manufactured using advanced materials such as glass-fused-to-steel (GFS) that offer superior resistance to thermal cycling, corrosion, and mechanical wear. This ensures long operational life and reliability even in harsh industrial atmospheres such as chemical plants and power generation facilities.

Industrial Applications

Steam-water separators are vital in many sectors that rely on steam for energy or processing:

• Power Generation: Protect turbines from moisture damage and improve efficiency.
• Chemical and Petrochemical: Maintain purity and process control during steam injection and heating.
• Food and Beverage: Ensure hygienic steam with no water carryover for cooking and sterilization.
• Textile Industry: Provide dry steam for dyeing and finishing processes.
• Pharmaceuticals: Enable controlled temperature and moisture conditions.
• Pulp and Paper: Improve drying efficiency and reduce scaling.

Benefits of Using Steam-Water Separators

• Improved Steam Quality: Delivering dry steam improves system efficiency and product quality.
• Reduced Maintenance: Avoids erosion, corrosion, and water hammer damage to equipment and piping.
• Energy Savings: Reduces latent heat losses from wet steam droplets.
• Safety Enhancements: Minimizes breakdown and accident risks associated with water in steam lines.
• Environmental Compliance: More efficient boilers and steam systems reduce fuel consumption and emissions.

Innovations and Trends

Leading-edge developments in steam-water separators include:

• Enhanced Computational Design: Using CFD modeling to optimize separator geometry for maximum efficiency at lower pressure drops.
• Automated Drain Control: Integration of sensors and actuators for automatic, reliable condensate removal, reducing manual intervention.
• Modular & Compact Designs: For ease of installation in tight plant spaces and retrofits.
• Improved Materials: Including GFS linings and advanced alloys for harsh chemical and high-temperature conditions.
• Hybrid Separators: Combining multiple separation mechanisms to achieve near-complete moisture removal.

Choosing the Right Steam-Water Separator

Selecting the correct separator requires assessment of:

• Steam flow rate and velocity
• Moisture load and steam dryness fraction
• Operating pressures and temperatures
• Space availability and maintenance preferences
• Regulatory and safety requirements

Center Enamel’s engineering team works closely with clients to conduct detailed analyses and provide tailored separator solutions optimized for each customer's needs.

Steam-water separators play an indispensable role in enhancing steam system performance by effectively removing entrained moisture. Their impact spans operational efficiency, equipment integrity, safety, and environmental performance. As industries evolve towards greater sustainability and automation, advanced steam-water separation technologies become key enablers.

Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) stands at the forefront, integrating decades of materials and engineering expertise to offer steam-water separators that set industry standards for quality, reliability, and innovation. Our commitment ensures industrial steam users worldwide achieve cleaner steam, lower costs, and greater operational excellence.

For industries seeking to optimize steam use, reduce maintenance, and ensure safety, Center Enamel’s steam-water separators provide the proven solution.
