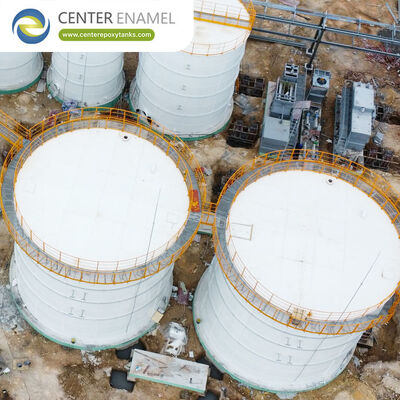

The Technical Standard for 2026 Water Treatment: FBE Biological Filter Tanks

In the 2026 global industrial wastewater, municipal sewage, and advanced aquaculture markets, biological filtration stands as a core unit process. Whether utilized in denitrification towers, Recirculating Aquaculture Systems (RAS), or high-load industrial wastewater plants, the structural and surface properties of the containment vessel directly dictate process stability.

Fusion Bonded Epoxy (FBE) biological filter tanks have emerged as a premier global engineering standard, combining the structural strength of bolted carbon steel with an advanced, molecularly cross-linked polymer barrier that is highly resilient to complex biochemical environments.

1. What is an FBE Biological Filter Tank?

An FBE biological filter tank is a modular, bolted containment structure where the steel panels are factory-coated with a high-performance thermoset epoxy resin.

Unlike traditional field-applied liquid paints, the Fusion Bonded Epoxy process involves electrostatically applying dry polymer powder to grit-blasted steel plates pre-heated to temperatures between 180°C and 230°C. The powder melts, flows, and chemically cross-links to form an inseparable protective barrier permanently bonded to the steel substrate. This creates a high-density, smooth internal lining that isolates the structural steel from the high-nutrient, corrosive environment of an active biofilter.

2. Technical Performance: Navigating the Biofiltration Environment

Biological filters operate by cultivating vast colonies of beneficial microorganisms (such as Nitrosomonas and Nitrobacter for ammonia conversion) on submerged or trickling filter media. This specific biochemical ecosystem introduces severe environmental stressors that FBE technology is uniquely engineered to withstand:

Advanced Corrosion Defense against Microbial Byproducts

The biological breakdown of nitrogenous compounds often leads to localized pH shifts and the formation of corrosive compounds, including mild acids and dissolved carbon dioxide. FBE tanks from industry leaders like Center Enamel (Shijiazhuang Zhengzhong Technology) utilize high-performance coatings that remain completely inert across a wide chemical spectrum (typically pH 3 to 11), preventing the pitting and structural decay common in concrete or unlined steel.

Superior Biofilm and Pathogen Control

While biofilm accumulation is required on the filter media, uncontrolled biofilm growth on the tank walls creates hydraulic dead zones and can harbor harmful pathogens. The smooth, non-porous interior surface of an FBE tank actively limits the surface area available for organic attachment, making it much easier to clean and sanitize during maintenance cycles.

Zero-Discontinuity Quality Assurance

In biological filtration, a single localized leak can destabilize the hydraulic head of the filter bed. To prevent this, every FBE panel undergoes a high-voltage electronic Holiday Test ($geq 1100text{V}$) at the factory. This electronic scan ensures a 100% pinhole-free coating, a level of quality assurance impossible to replicate with field-applied liquid epoxies or concrete sealants.

Advanced Edge Wrap Protection

Because bolted tanks rely on joint integrity, modern FBE tanks utilize advanced powder-application processes that ensure full, uniform coating thickness around panel edges and bolt holes, eliminating the primary sites for premature rust.

3. Comparative Analysis: FBE vs. Concrete vs. Stainless Steel

4. Specialized Applications in Modern Water Systems

FBE biological filter tanks serve as the critical reaction node across multiple environmental engineering sectors:

• Recirculating Aquaculture Systems (RAS): In land-based farming, preserving water purity is paramount. The zero-leaching properties of FBE ensure that no metallic ions migrate into the water, protecting vulnerable species from chemical toxicity while stabilizing pH levels.

• Industrial Wastewater Denitrification Towers: Handling high-load effluents from chemical processing, textiles, and pharmaceutical production. The tough, cross-linked thermoset epoxy layer resists abrasive wear when fluid dynamics cause random plastic filter media to shift.

• Municipal Sewage Biofilters: Acting as trickling filters or submerged aerated filters (SAF) to drastically reduce Biological Oxygen Demand (BOD) and total suspended solids.

5. Engineering Codes and Compliance Verification

To satisfy international infrastructure criteria for municipal and industrial bidding, premium FBE biological filter structures comply with rigorous global engineering codes:

1. AWWA D103-19: The global premier standard for factory-coated bolted carbon steel liquid storage.

2. ISO 28765:2016: The specific international standard governing high-performance coating quality for water and industrial effluent storage.

3. NSF/ANSI 61 & FDA Compliance: Ensuring that the coating chemistry is safe for sensitive bio-filtration loops and introduces zero harmful compounds into the water.

4. ASCE 7-22 / Eurocode 3: Structural engineering parameters that calculate for seismic resilience and extreme wind loads up to 250 km/h.

Future-Proofing Biofiltration Assets

For environmental engineers, project developers, and EPC contractors focused on optimizing Total Cost of Ownership (TCO), the FBE biological filter tank represents a highly secure, scalable, and economical infrastructure asset for 2026. By eliminating the structural cracking vulnerabilities of concrete and the prohibitive costs of high-grade stainless steel, FBE technology ensures that biological treatment loops remain highly efficient, completely biosecure, and structurally sound for an operational lifespan exceeding 30 years.

Are you currently designing a biological filtration system, such as a nitrification tower or an active RAS loop, and would you like a detailed technical proposal including sizing, engineering standards compliance, and structural data?
